LG NeON® R Q1C-A5 power and design with 25-year warranty

LG’s NeON® R Q1C-A5 monocrystalline photovoltaic panel, launched in 2017, is currently the LG module with the highest performance, efficiency and stability in all weather conditions.

Available in powers from 360/365/370 Wp

Main features NeON® R:

– New structure with cells without front contacts
– Power warranty extension
– Improved temperature coefficient, more power on sunny and hottest days
– Excellent power output even in conditions of partial sunshine
– Frame with extremely strong reinforced structure
– Suitable for limited spaces thanks to higher efficiency and power

60-cell structure with innovative design

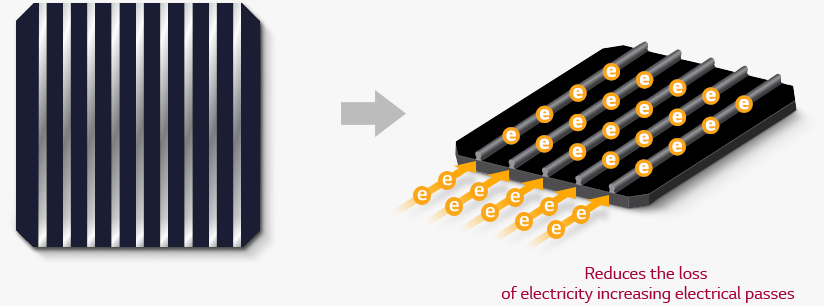

The cells of the photovoltaic module NeON® R produce more energy thanks to the N-type front side without bus-bars that exposes it entirely to the light without shadow zones or reflections given by the electrodes.

The bus-bars are placed only on the back of the cell. Compared to the 3 or 4 bus-bars in the standard panels there are 30 bus-bars that reduce the loss of electricity and give the module a highly aesthetic appearance.

25 year warranty on product and performance

Already in 2017 it improve a 25-year warranty on both the product and the power, today the Pmax power warranty has been further improved, during the first 5 years 98%, from the 5th year 0.4% of annual degradation and from the 25th year is 88.4% guaranteed. (This applies to all modules produced after July 1, 2017).

TOP Brand PV Modules 2018 for excellent quality and high performance in all weather conditions

NeON® R Q1C-A5 in strong sunlight conditions maintains its peak performance, without reductions due to high temperatures. This feature and the quality of the product, for the fourth time in a row, in 2018 awarded the LG solar modules with the “TOP BRAND PV” brand.

Extremely durable reinforced frame

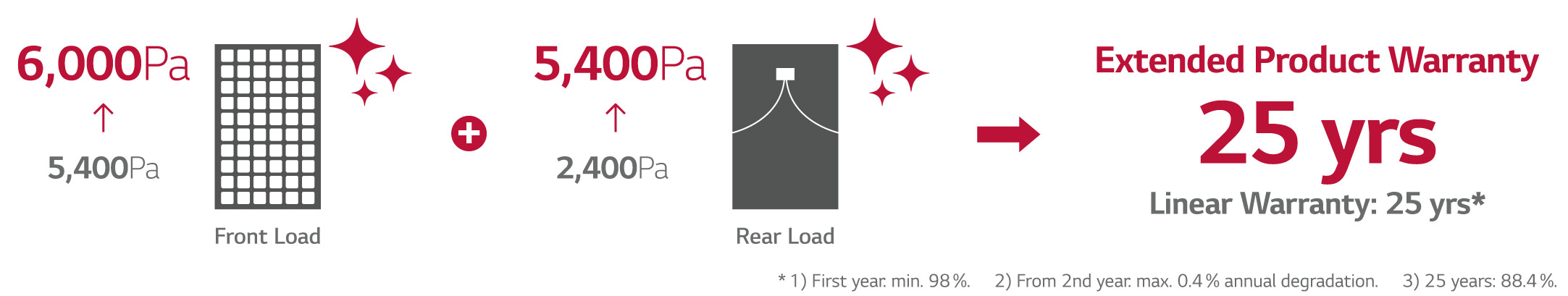

This photovoltaic panel is able to withstand loads up to 6.000Pa on the front (equal to an accumulation of normal snow of over 1.8m in height) and up to 5.400Pa on the back (equal to a wind speed up to 93m / s , similar to that of Hurricane Katrina 2005: 75m / s).

Performance and greater power

NeON® R Q1C-A5, thanks to its high performance and higher power, is a photovoltaic module ideal for installations on limited spaces.

,

LG: NeON R Q1C-V5 – mono 60 cell

LG

LG NeON® R monocrystalline photovoltaic module of 60 cells with high performance and maximum power 370Wp.

The innovative cell structure without standard busbars on the cell front, improving performance and reliability.

  • Linear Warranty: 25 yrs
  • After 25 years minimum power make sure 88.4%
  • Available models: 360 – 365 – 370 Wp

A 60 cell N-type monocrystalline module, aesthetically innovative and with an exceptional power of up to 380 Wp, is an optimal solution for any roof and need.

Strong design, powerful performance

The busbars on the new LG NeON® R were mounted on the rear of the cells to expose the entire front side to light and therefore generate more electricity. LG creates an innovative and aesthetic
cell design by incorporating 30 rear-side busbars instead of the 3 or 4 standard busbars on the cell front, a revolutionary approach that guarantees outstanding module performance.

Powerful Design, guaranteed robust

With reinforced frame design, LG NeON® R can endure a front load up to 6,000Pa (represents snow height of normal snow of more than 1.8 meters) and a rear load up to 5,400Pa (represents wind speed of up to 93 m/s, compare max. wind speed of Hurricane Katrina 2005 of max. 75 m/s).

25 Years Product Warranty

As well as the enhanced performance warranty, LG has extended the product warranty of the LG NeON® R from 15 years to 25 years.

Documentation and certifications: https://www.lg.com/global/business/solar/business-resources/download

LG: NeON R Q1C-V5 – mono 60 cell was last modified: September 30th, 2019 by VPmin
Categories: , Tags: , ,

Mechanical Properties

Cells 60
Cell Type Monocrystalline / N-type
Dimensions (L x W x H) 1700 x 1061 x 40 mm
Front Load / Rear Load 6000 Pa / 5400Pa
Weight 17,5 kg
Junction Box IP68 with 3 Bypass Diodes
Cables 1,000 mm x 2 ea
Glass 2.8mm / Tempered Glass with AR Coating
Frame Anodized Aluminium



Electrical Properties

Model LG365Q1C-V5 LG370Q1C-V5
Maximum Power (Pmax) 365 370
MPP Voltage (Vmpp) 36.7 V 37 V
MPP Current (Impp) 9.95 A 10.01 A
Open Circuit Voltage (Voc) 42.8 V 42.8 V
Short Circuit Current (Isc) 10.8 A 10.82 A
Module Efficiency 21.1% 21.4%
Power Tolerance 0 ~ +3
