Fimer: three-phase inverters for large installations Trio 20/27.6-TL-OUTD

Why choose Trio 20-TL-OUTD and TRIO 27.6-TL-OUTD of Fimer?

The TRIO 20.0/27.6 commercial inverter offers more flexibility and control to installers who have installations with varying configurations and orientations.

Fimer solutions for every needs

  • They allow more flexibility and control to installers who have large pv installations with varying aspects or orientations.
  • Controlling more PV panels
  • This devices have two independent MPPTs and efficiency ratings of up to 98.2%.
  • The very wide input voltage range makes the inverter suitable to installations with reduced string size.
  • Each inverter is set on specific grid codes which can be selected in the field
  • Built-in heat sink compartment and front panel display system.
  • The unit is free of electrolytic capacitors, leading to a longer product lifetime.
  • These three-phase inverters fill a specific niche in the commercial solar market.

VP Solar official distributor of Fimer inverters all over Europe, provides the whole range of them.
Our engineers will support installers and resellers with the best configuration, just contact us.
Do you want to discover the whole range of Fimer inverters?

,

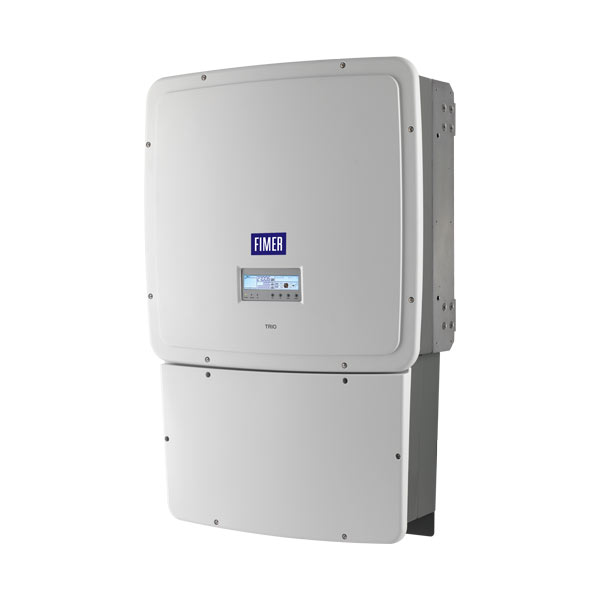

FIMER TRIO-20.0/27.6-TL-OUTD

FIMER

TRIO-20.0/27.6-TL-OUTD three phase inverters are designed for large commercial application, with variable orientation.

It is equipped with two independent high speed MPPT, up to 98.2% of efficiency.

Wide input voltage range, short strings can also be made.

Also available with integrated string framework in the versions with DC disconnect, arresters, fuses and string current control (-S2/-S2F/S2X/S1J/S2J).

  • Type without converter
  • Removable wiring box
  • Wide input voltage range
  • Models: TRIO-20.0-TL-OUTD – TRIO-27.6-TL-OUTD

TRIO-20.0/27.6-TL-OUTD Inverter for commercial applications

  • With “short” strings and multiple orientations, thanks to the double MPPT, it is suitable for large commercial installations. Flat efficiency curves, high return to all lever.
  • TRIO presents a quick and precise MPPT algorithm for a real time power tracking and a best energy harvest.

High efficiency

  • Flat efficiency curves ensure high yield to all supply levels, ensuring a constant and stable performance in the whole range of input voltage and output power.
  • The device has a yield that reaches the 98.2%

Easy to install

  • Removable wiring box for easy installation
  • Possibility of direct connection of external environmental sensors and DC auxiliary output (24 V, 300 mA)
  • PC or data logger connection through integrated RS485 interface communication.

Outdoor inverter

  • Natural convention cooling in the outer casing it guarantees maximum reliability in any environmental condition.
  • Construction without electrolytic capacitors to ensure reliability and long life.
Categories: , Tags: , ,

Technical data

ModelsTRIO-20.0-TL-OUTDTRIO-27.6-TL-OUTD
Rated input DC power20750 W28600 W
Maximum absolute DC input voltage1000 V
Number of independent MPPTs2
MPPT voltage range DC440…800 V500…800 V
Maximum DC input current for each MPPT50.0 A / 25.0 A64.0 A / 32.0 A
AC type of connection to the gridThree phase 3 wires + PE or 4 wires + PE
Rated output AC power20000 W27600 W
Degree of environmental protectionIP 65
DC type of connectionQuick coupling PV connector 3) / Screw terminal block in standard and –S2 version
AC type of connectionScrew terminal block, PG36 cable press
