SolarEdge, a brand that has always offered quality solutions, suitable for any residential and commercial system, has several devices that perfectly adapt to many applications where a storage system is needed for your photovoltaic system.
A series of products are undoubtedly the inverters, present both with single-phase and three-phase connection, DC side or connectable on the alternating side.
Single-phase inverter HD-Wave
This particular solution has a string inverter specifically designed to work with power optimizers and very simple to install, commissioning can be done quickly and effectively through the SetApp application.
This type of inverter has sizes ranging from 2200 VA on the AC side to 6000 VA.
This product is available both in the solution without Sesti, and in that with an integrated interface.
The HD-Wave single-phase inverter also features integrated module-level monitoring and the integrated electric arc protection function.
A recent solution introduced by SolarEdge is three-phase inverters with DC side coupling. This product, if a Solaredge three-phase inverter is already installed, can also be coupled to the high AC, by connecting a single battery and any Smart Energy devices to it.
To offer greater flexibility, a wide range of 48V low voltage batteries can be connected to this inverter.
This device has 4 different power sizes: 5, 7, 8 and 10 kVA. The maximum battery input power is different: in this, it is equal to 5000 W regardless of the inverter size chosen for your system.
As for the HD-Wave single-phase inverter, the degree of protection for this product is IP65 and can, therefore, be installed indoors and outdoors.
Solaredge’s third storage solution features a single-phase inverter with HD-Wave technology that can be connected on the AC side, to which the Sesti interface protection must be combined.
This product has been designed to work in single-phase or three-phase systems, with SolarEdge string inverters or even third-party ones.
In this case, the sizes available are 2: 3680 VA and 5000 VA, in both cases with an efficiency close to 99%.
As in the two previous cases, this product also has the possibility of communicating with Smart Energy devices and can be installed both indoors and outdoors.
SolarEdge: energy meter with Modbus Connection
The SolarEdge counter is used for battery integration and production/consumption reading for limiting input.
- High accuracy meter readings for production/consumption monitoring
- Small and easy to install – fits in standard electrical panel
- Available: SE-WND-3Y400-MB-K2
Inverters, Inverters SolarEdge, SolarEdge, SolarEdge, Storage
SolarEdge: StorEdge AC Coupled HD-Wave SE3680H-SE5000HInverters, Inverters SolarEdge, SolarEdge, SolarEdge, Storage
SolarEdge: StorEdge AC Coupled HD-Wave SE3680H-SE5000H
StorEdge AC Coupled Single Phase Inverter with HD-Wave Technology
The main features are:SKU: n/a
Inverter per impianti residenziali, Inverters, SolarEdge, SolarEdge, Storage
SolarEdge: StorEdge single phase hybrid inverter HD-Wave – 2.2 / 6 kWInverter per impianti residenziali, Inverters, SolarEdge, SolarEdge, Storage

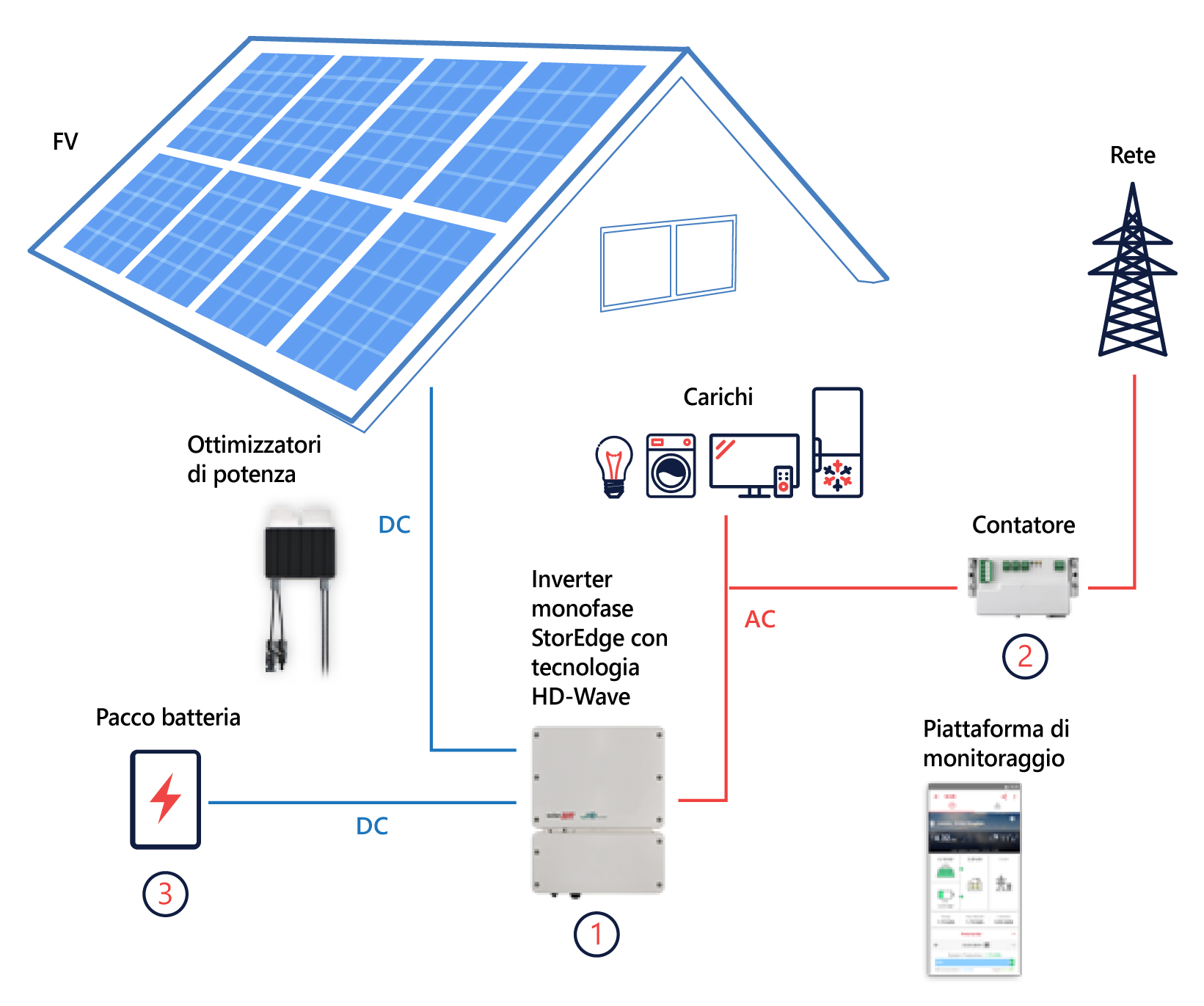

SolarEdge: StorEdge single phase hybrid inverter HD-Wave – 2.2 / 6 kW
Single-phase StorEdge inverter with HD-Wave technology to manage the photovoltaic system, batteries and energy consumption with a single inverter. Ideal solution for new installations.
- Record efficiency of 99% weighted
- 12 year warranty extendable to 25 years
- Sizes available: SE2200H / SE3000H / SE3500H / SE3680H / SE4000H / SE5000H / SE6000H
SolarEdge: StorEdge system DC coupled solution
The SolarEdge StorEdge DC coupled solution allows to optimize the efficiency of the accumulation system.
The solution involves the use of a single inverter both for photovoltaic and storage systems, of a special interface and of an high-voltage battery compatible with LG Chem.
1] Power from 2.2 to 6 kW
2] StorEdge can be integrated into existing SolarEdge systems
3] Compatible Batteries LG Chem RESU7H SEG and RESU10H SEGSKU: n/a

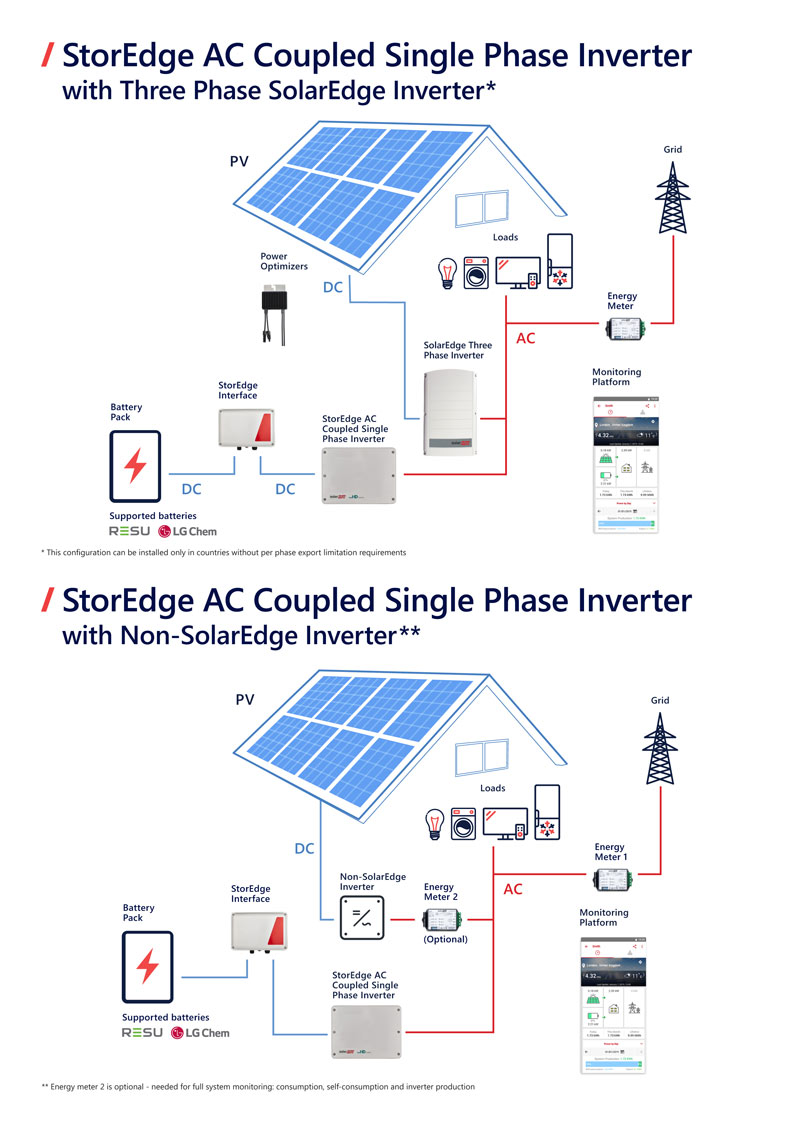

StorEdge AC coupled
The SolarEdge storage solution, which is particularly suitable for existing photovoltaic plants, is the StorEdge AC Coupled.
It consists in an inverter specially designed for the StorEdge interface and for a compatible high voltage battery.
This system permits to realize in a very simple way an accumulation system even if there is an inverter of another manufacturer installed.
1] Power from 3.68 to 5 kW
2] Maximum installation flexibility
3] Use of high-voltage batteriesSKU: n/a
StorEdge Interface – SESTI
The StorEdge Interface is the intelligent core for implementing storage solutions with SolarEdge inverters.
Simple installation and connections for battery and measurement counter SolarEdge
- Compatible with all the SolarEdge Single Phase Inverter
- Allows connection of selected battery vendors such as the LG Chem RESU to a SolarEdge inverter
- Designed to eliminate hazardous voltages during installation, maintenance and in case of fire
