LG Energy Solution RESU – high voltage – 10M

LG Energy Solution

High-voltage residential battery with modular design consisting of two battery modules and a BPU (Battery Protection Unit), which make it extremely handy and easy to install.

  • battery module weight 36Kg, total weight with all three parts combined 80 kg

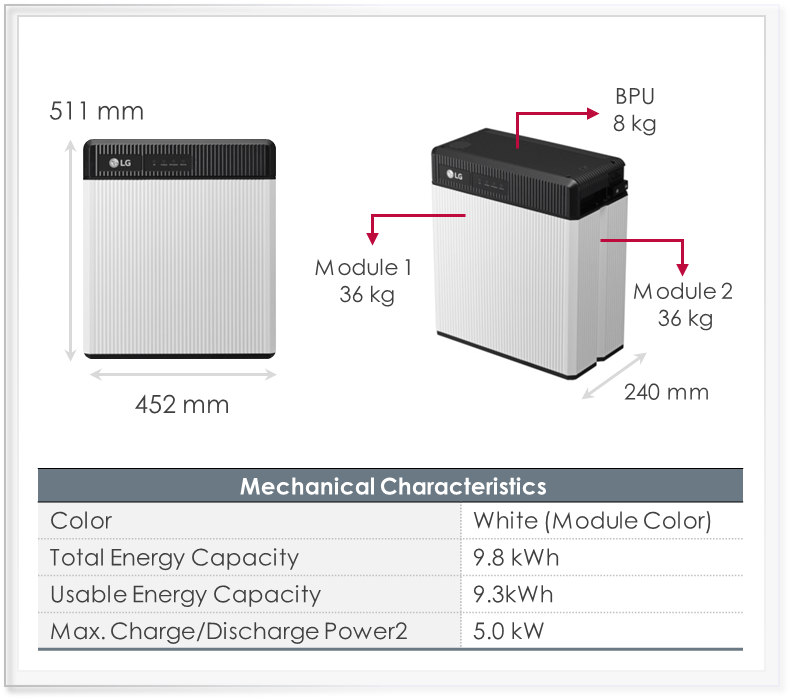

  • extremely small size: base 45cm x height 51cm and 24cm deep
  • compatible with Sunny Boy Storage 3.7 inverters
  • RESU10M energy 9.8 kWh

LG Energy Solution RESU10M high voltage battery with modular and compact design. The latest generation electrochemical cells offer high performance and an improved 10 year warranty.

Modular system for quick installation

Thanks to the modular design this battery consists of 2 battery modules and a BPU (Battery Protection Unit). The modularity of the system allows easy management during installation and maintenance.

The weights are extremely low, each battery module weighs 36 kg and the BPU 8 kg for a total total once assembled of 80 kg, very light compared to other 10 kWh systems.

Compatible with SMA Sunny Boy Storage 3.7 inverters

This battery is specifically compatible with the inverter SMA Sunny Boy Storage 3.7 even in the absence of an internal DC / DC converter, the RESU10M interfaces directly with the inverter.
