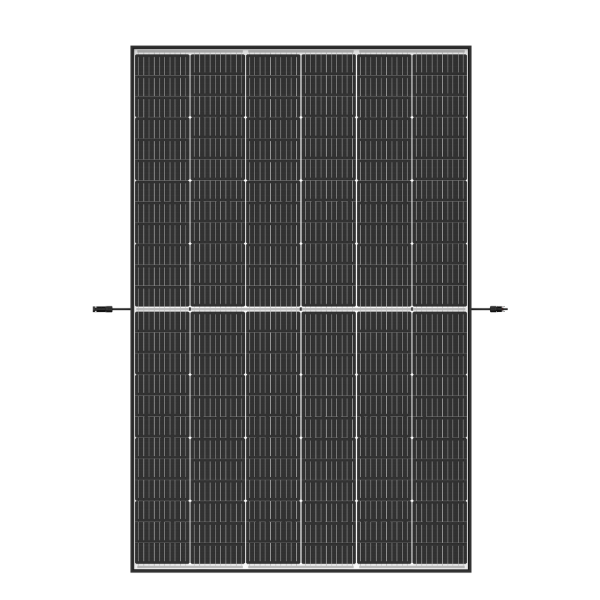

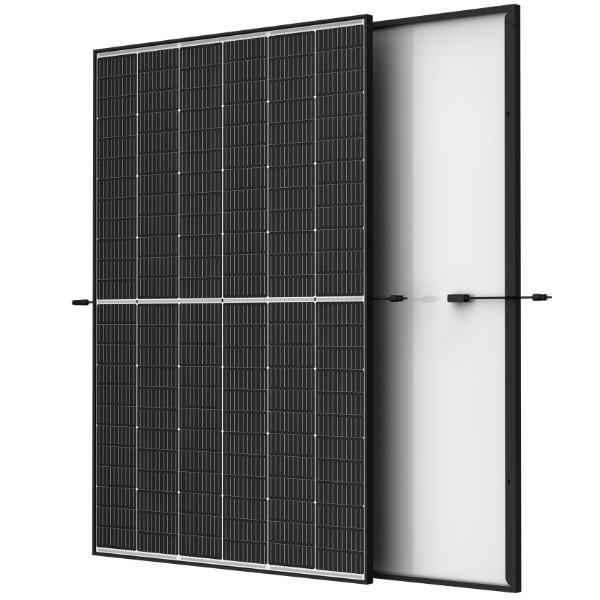

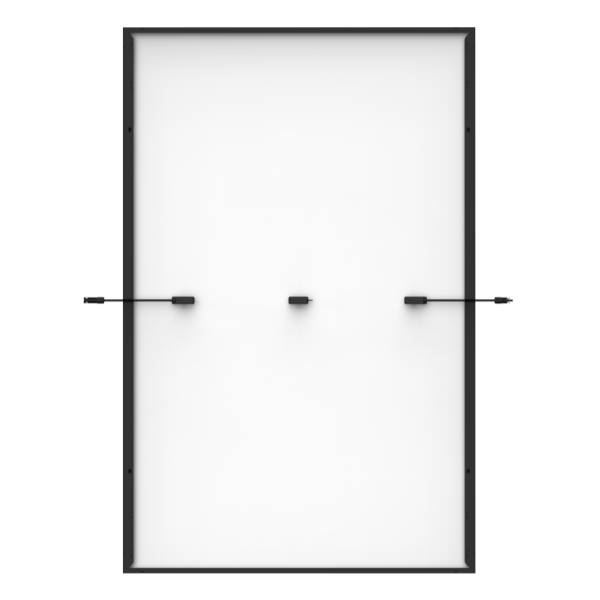

Trina Solar Vertex S TSM-DE09R.08 – 415 Wp


Vertex S+ TSM-DE09R.08 is a small-sized, lightweight monocrystalline module suitable for many types of installation.

  • Maximum efficiency 20.8 %
  • 144 half cells
  • Multi busbar technology
  • Available size: 415 Wp

High performance

Vertex S modules incorporate an innovative design that integrates 1/3 cell split, non-destructive cutting and high-density interconnection technologies.
Thanks to the multi-busbar technology combined with the use of 210mm monocrystalline cells, TSM-DE09.08 is able to guarantee excellent levels of performance.

Another important value is the temperature coefficient for maximum power, which is -0.34%/°C. These panels are therefore able to maintain high power even in non-optimal temperature conditions.

Universal solution

Vertex S TSM-DE09.08 is designed to be compatible with the most common inverters and optimisers. The module’s size and weight make it easy to transport and install, and suitable for various installations.

Snow and wind resistance

Due to its robust composition, TSM-DE09R.08 can withstand up to 6000 Pa snow load and 4000 Pa wind load.

Warranty

Trina guarantees these modules for 15 years and its performance with a linear performance guarantee, Trina Solar guarantees a degradation of 2% in the first year and <0.55% in the other years.
