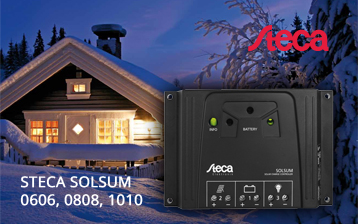

Steca, an important German brand in the production of devices for off-grid systems, has introduced the new series of charge controllers Steca Solsum F 0606, 0808, 1010.
These products have a power range that can reach 240 W thanks to a maximum current of 10 A and a voltage of 12 or 24 V.
This series of devices can easily connect to solar panels, battery and loads. Thanks to the LEDs on the device, it can also always monitor the battery status.
Steca Solsum F 0606, 0808, 1010
The new Steca Solsum F is a device divided into 3 sizes: 0606, 0808, 1010.
They are distinguished by two fundamental features, which are the input current module and the charging current.
In the specific case the currents are:
- model 0606 equal to 6 A
- model 0808 equal to 8 A
- model 1010 equal to 10 A
As for the other technical data, there are no relevant differences between the 3 sizes of products.
Technical data
- Degree of protection: IP31
- Set battery type : gel
- Ambient temperature: -25 °C … +50 °C
- End-of-charge voltage: 13.9 V (27.8 V)
- Boost charge voltage: 14.4 V (28.8 V)
Product features
- Serial topology with MOSFETs
- Automatic detection of voltage
- Voltage regulation
- PWM control
- Multistage charging technology
- Automatic load reconnection
- Temperature compensation
- Negative earthing of one or positive earthing of several terminals possible
- Monthly equalisation charge
The new series of charge controllers also features 4 LEDs that show the operating statuses for the operation, battery charge status and error messages.
Electronic protection functions
All the sizes of the Steca Solsum charge controllers guarantee all the fundamental protection functions for this type of device, such as:
- Overcharge protection
- Deep discharge protection
- Reverse polarity protection of module (≤36 V),load and battery
- Short circuit protection of load and module
- Overvoltage protection at module input
- Open circuit protection without battery
- Reverse current protection at night
- Overtemperature and overload protection
- Load disconnection on battery overvoltage
Steca Solsum 0606, 0808, 1010 solar charge controllers
The Steca Solsum continues the huge success of one of the most used SHS controllers. With a power range of up to 10 A at automatically recognized 12 V or 24 V it fits to a system sizes of maximum 240 W.
Full circuit board protection with LED display for simple recognition of battery status. Various connections make it possible to connect easily to solar panels, battery and load. The Steca Solsum F works on PWM as a low loss series controller.
Datasheet
Manuals
Certifications
Product features
- Serial topology with MOSFETs
- Automatic detection of voltage
- Voltage regulation
- PWM control
- Multistage charging technology
- Current compensated load disconnection
- Automatic load reconnection
- Temperature compensation
- Negative earthing of one or positive earthing of several terminals possible
- Monthly equalisation charge
Electronic protection functions
- Overcharge protection
- Deep discharge protection
- Reverse polarity protection of module (≤36 V), load and battery
- Automatic electronic fuse
- Short circuit protection of load and module
- Overvoltage protection at module input
- Open circuit protection without battery
- Reverse current protection at night
- Overtemperature and overload protection
- Load disconnection on battery overvoltage
Displays
- Multifunction LED display
- Multi-coloured LED4 LEDs show
- operating states
- for operation, state of charge, fault messages
Options
- Evening or night light function pre-set in the factory or adjustable via Steca PA RC 100
- Parameterisation of function values via Steca PA RC 100
Certificates
- Compliant with European Standards (CE)
- RoHS compliant
- Made in EU
- Manufactured according to ISO 9001 and ISO 14001
Accessories
- Steca PA RC100
Technical data
| Modells | 0606 (6 A) | 0808 (8 A) | 1010 (10 A) |
| System voltage [V] | 12 V (24 V) | ||
| Open circuit voltage solar module (at minimum operating temperature) [V] | 47 V | ||
| Module current [A] | 6 A | 8 A | 10 A |
| End-of-charge voltage | 13,9 V (27,8 V) | ||
| Boost charge voltage [V]* | 14,4 V (28,8 V) | ||
| Reconnection voltage (SOC / LVR) * | > 50% / 12,4 V … 12,7 V | ||
| Deep discharge protection (SOC / LVD) * | > < 30% / 11,2 V … 11,6 V | ||
| Ambient temperature [°C] | – 25 °C … +50 °C | ||
| Degree of protection [°C] | IP 30 / NEMA tipo 1 | ||
* Solar charge controller is protected against reverse battery polarity together with
polarity protected loads. Reverse battery polarity combined with short circuited or
polarised load could cause damages in load or regulator
* The reverse-polarity protection of the solar module in a 24 V system is only provided
up to an open-circuit module voltage of 36 V.
* Lower value for nominal current, higher value for lowest current
