StorEdge

SolarEdge’s StorEdge solution for photovoltaic storage

The SolarEdge solution for home photovoltaic storage to maximize self-consumption of your home is StorEdge.

Maximize the self-consumption of the plant with the SolarEdge system

Accumulation allows you to become more electrically independent to the grid, as it charges and discharges according to the needs of the occupants.

StorEdge is the system that allows the continuous coupling of its photovoltaic system with a photovoltaic accumulator and can also be installed on existing SolarEdge photovoltaic plants.

StorEdge in combination with LG Chem RESU batteries

StorEdge is compatible with LG Chem RESU7H and RESU10H batteries thanks to a firmware upgrade, in particular:

  • RESU7H with No-HD-Wave single-phase inverter: SESTI-S1, SESTI-S2 | Compatible with inverter CPU version 3.2150 or higher. New firmware required.
  • RESU7H with HD-Wave single-phase inverter: SESTI-S4 | Compatible with inverter CPU version 3.2186 or higher. New firmware required.
  • RESU10H with No-HD-Wave single-phase inverter: SESTI-S2 | Compatible with inverter CPU version 3.2150 or higher. New firmware required.
  • RESU10H with HD-Wave single-phase inverter: SESTI-S4 | Compatible with inverter CPU version 3.2186 or higher. New firmware required.

All interfaces and firmware are currently available, but not all high-voltage RESU batteries are compatible with SolarEdge. Compatible batteries contain SEG in the product code.

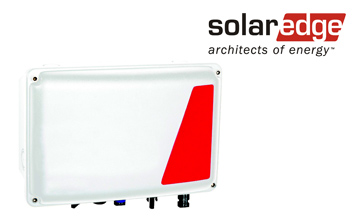

Discover SolarEdge StorEdge SESTI-S1

,

SESTI-S1

SolarEdge

The StorEdge Interface is the intelligent core for implementing storage solutions with SolarEdge inverters.

Simple installation and connections for battery and measurement counter SolarEdge

  1. Compatible with all the SolarEdge Single Phase Inverter
  2. Compatible with Tesla powerwall and LG Chem RESU
  3. Designed to eliminate hazardous voltages during installation, maintenance and in case of fire

Scheda Tecnica

Manuale

Allows the connection of high-voltage compatible lithium batteries as powerwall Daily Tesla or RESUxH LG Chem to a SolarEdge Single Phase Inverter by connecting in parallel to the series of optimizers.

It Can ‘be used to upgrade existing systems with string inverters SolarEdge inverter SE 3500 or applied to AC coupling of single-phase systems with inverter production third-party or three-phase system with SolarEdge inverters.

As for optimizers is designed to reduce tension and the DC current to a safe level during installation, maintenance, or the intervention of operators anti fire.

SESTI-S1 was last modified: January 18th, 2017 by VPmin

Dati tecnici

Modello SESTI-S1
Massima potenza DC N/D
Massima tensione DC 1000 V
Massima corrente 8.5 A
Tipo di connessione AC alla rete Non ammesso
Potenza nominale N/D
Capacità utile A seconda della batteria collegata
Tecnologia A seconda della batteria collegata
Rendimento Europeo N/D
Rendimento Ciclo carica/scarica A seconda della batteria collegata
Dimensioni [H x L x P] (mm) 206.6 x 316 x 117.5
Peso (kg) 3
Grado di protezione IP65
Backup Con aggiornamento futuro
SESTI-S1 was last modified: January 18th, 2017 by VPmin
