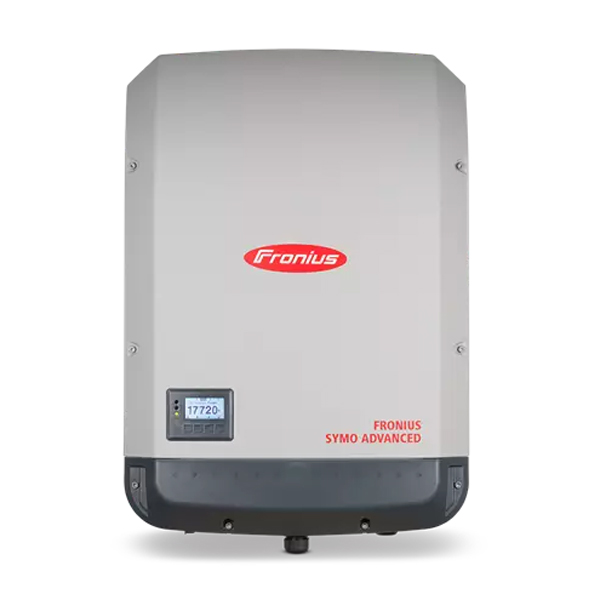

Fronius Symo Advanced 10.0 / 20.0 – three-phase string inverter


The Fronius Symo Advanced is a three-phase inverter ideal for commercial and industrial applications, designed to guarantee reliability, efficiency and maximum safety in every installation.

  • 2 MPPT (3 inputs each)
  • Fronius Arc Guard (AFCI)
  • Integrated DC circuit breaker
  • Integrated datamanager: WLAN, Ethernet, 2x RS485, USB
  • Warranty: 5 to 10 years (see manufacturer’s website for more details)

Available sizes:

  • Standard version: 10.0-3-M, 12.5-3-M, 15.0-3-M, 17.5-3-M, 20.0-3-M
  • Light version (without Datamanager): 10.0-3-M Lite, 12.5-3-M Lite, 15.0-3-M Lite, 17.5-3-M Lite, 20.0-3-M Lite

Increased safety

The Fronius Symo Advanced integrates Arc Guard technology, an innovative system for detecting and preventing dangerous arcs. This ensures a higher level of protection, minimizing fire risks and increasing the reliability of the photovoltaic system.

Optimal performance over time

The Dynamic Peak Manager algorithm ensures intelligent management of shading, maximizing energy production even in difficult conditions. This advanced technology minimizes operating costs, offering high and constant performance over the long term.

Advanced communication and monitoring

The standard version (not Light) is equipped with a datalogger with integrated webserver, which offers intuitive tools for monitoring and managing the system. Thanks to WLAN and Ethernet connections, the inverter allows easy access to production data and to diagnose any problems in real time, improving the overall management of the system.

  • IP66
  • Maximum efficiency: 97.9%
  • DC/AC oversizing up to 150%
